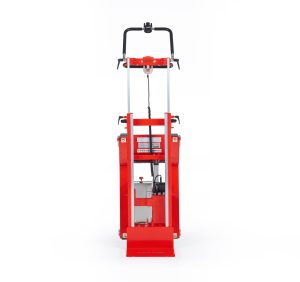

Skipper Plasmoid Stairlift

DESCRIPTION

Skipper represents the optimal solution for transporting bulky loads and coffins on stair ramps, thanks to its motorized structure. The device’s stability is ensured by tracks made from a patented compound with anti-stain and non-slip properties. This unit is capable of handling all types of stairs, including narrow landings, spiral staircases, and structures made of marble or wood, as well as steps of varying height and irregularity.

Through a patented system, Skipper ensures the balance of the load is maintained on significant inclines—up to 60°—while remaining self-braking; the tilt angle is also adjustable as needed. The height-adjustable base, which can extend up to 18 cm, allows the operator to select the most suitable loading position.

The space required for maneuvering is equivalent to that of a manual trolley. The integration of an optional anti-tip base with electric piston further reduces the operating footprint, enabling the device to automatically position itself at the base of the ramp while ensuring stability.

Skipper also stands out for its versatility beyond stairs: thanks to the optional wheeled base with four wheels, manual pushing on irregular surfaces or gravel grounds is also smooth and efficient.

Tecnical sheet

OPERATIONAL CAPABILITIES

Standard equipment

  • 1 Strap for securing the load
  • 1 Standard battery pack (lead-gel base)
  • 1 Battery charger (220V/24V)
  • 1 Standard metal plate 40 cm x 25 cm (L×W)

VERSIONS

Skipper Plasmoid - AGM -300
Code: CSS160
CLOSED SIZE: 53.3x27.9x126.9 Ascent: 750 steps approx.
Weight: 89 kg
Size without basket: nd
Size with basket: nd
Capacity: 300
Closed height: nd
Open height: 130,7
Closed height: nd
Lifting: electric
Rotation: 360°
Traction: electric
Skipper Plasmoid - AGM -400
Code: CSS300
CLOSED DIMENSIONS: 53.3 × 27.9 × 126.9 cm Climbing capacity: approx. 500 steps
Weight: 89 Kg
Size without basket: nd
Size with basket: nd
Capacity: 400
Closed height: nd
Open height: 130,7
Closed height: nd
Lifting: electric
Rotation: 360°
Traction: electric
Skipper Plasmoid - Litio - 300
Code: CSS400
CLOSED DIMENSIONS: 53.3 × 27.9 × 126.9 cm Climbing capacity: approx. 2000 steps
Weight: 89 Kg
Size without basket: nd
Size with basket: nd
Capacity: 300
Closed height: nd
Open height: 130,7
Closed height: nd
Lifting: electric
Rotation: 360°
Traction: electric
Skipper Plasmoid - Litio - 400
CLOSED DIMENSIONS: 53.3 × 27.9 × 126.9 cm Climbing capacity: approx. 1500 steps
Weight: 89 Kg
Size without basket: nd
Size with basket: nd
Capacity: 400
Closed height: nd
Open height: 130,7
Closed height: nd
Lifting: electric
Rotation: 360°
Traction: electric

OPTIONAL ACCESSORIES

Aluminium ramp
Required for loading and unloading goods from commercial vehicles such as vans and trucks up to 140 cm in height from the ground. The standard dimensions are 67 cm × 8 cm × 200 cm, but it can be custom-made. It has a load capacity of 600 kg.
Wheeled base with oversized wheels
This accessory supports the load on four wheels, making it suitable for manual transportation of coffins on uneven surfaces such as roads, sidewalks, etc.
Extra battery box
It is interchangeable with the standard base and allows the device's working autonomy to be extended.
Wheeled base with standard wheels
This accessory supports the load on four wheels, making it ideal for manual transportation of coffins.
Once near the stairs, the wheeled base allows the device to immediately begin climbing without delays and with minimal effort.
